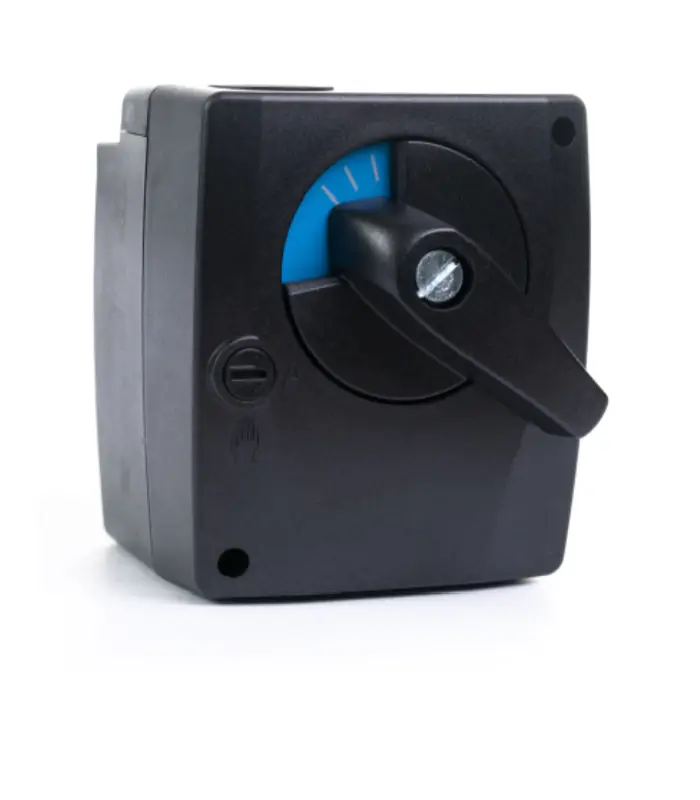

Moteur actionneur womix pour vanne motorise avec sande et regulateur
Le moteur actionneur Womix est conçu pour piloter efficacement les vannes motorisées dans vos installations de chauffage, climatisation ou plancher chauffant. Équipé d’une sonde de température et d’un régulateur intégré, il permet un contrôle précis de la température et un réglage automatique selon vos besoins.
Demander un devis gratuit
19
People watching this product now!
Paiement en ligne sécurisé :
📌 Conditions de Paiement
💳 Un acompte de 50 % est requis pour valider votre commande.
📦 L’envoi sera effectué après réception de cet acompte.
🙏 Merci pour votre confiance. Nous restons à votre disposition.
Actuator MP10 for mixing valves
 |
MP 10 actuator consists of a synchronous motor with capacitor, two limit switches, two cams positioned on the 90 degrees, the knob, the color scale for visualizing the position of the heart of the valve, a switch for manually changing the position of the heart of the valve. The factory is equipped with a 2 meter cable 3 x 0.75 mm2 and an adapter A 101 for mounting the actuator on the mixing valve MIX M, MIX MT, 3F, 4F from WOMIX. Using an adapter connecting actuators, MP 10 can be mounted on the mixing valve manufacturing of other companies (see the numbers of adapters). |
Technical data:
| Nominal voltage: | 230 V, +/- 15V, 50/60 Hz, or 24 V, +/- 15V, 50/60 Hz, |
| Power consumption: | 3,5 W; 3,5VA |
| For wire sizing: | wire, 3 x 0,75mm2, length – 2m |
| Torque: | 10 Nm (for nominal voltage) |
| Angle of rotation: | 90 °, unregulated |
| Running time: | 70, 140 seconds for the voltage 230 VAC
140 seconds for the voltage 24 VAC |
| Noise level: | max. 35 dB (A) |
| Position indicator: | stuck on the handle body |
| Protection class: | II |
| Degree of protection: | IP 40 |
| Operating Temperature Range: | 0 – 50°C |
| Weight: | 350 g |
| Switch to manual operation |
|
Type |
Catalog number |
|---|---|
| Actuator MP 10 – 230 / 70 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401010 |
| Actuator MP 10 – 230 / 140 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401011 |
| Actuator MP 10 – 24 / 140 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401012 |
| Actuator MP 10 – 24 / 140 (0-10V) with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401041 |
| Adapter A 101 for mixing valve MIX M, 3F, 4F WOMIX – base equipment | 401101 |
| Adapter A 062 for mixing valve WITA Minimix or type H, Meibes V6 | 401062 |
| Adapter A 063 for mixing valve Meibes V7 | 401063 |
| Adapter A 064 for mixing valve ESBE, Danfoss | 401064 |
| Adapter A 065 for mixing valve ESBE, Danfoss VRG, VRB | 401065 |
| Adapter A 066 for mixing valve Womix old generation | 401066 |
Dimensions:
| Brand |
WOMIX |
|---|
Only logged in customers who have purchased this product may leave a review.
Description
Actuator MP10 for mixing valves
| |
MP 10 actuator consists of a synchronous motor with capacitor, two limit switches, two cams positioned on the 90 degrees, the knob, the color scale for visualizing the position of the heart of the valve, a switch for manually changing the position of the heart of the valve. The factory is equipped with a 2 meter cable 3 x 0.75 mm2 and an adapter A 101 for mounting the actuator on the mixing valve MIX M, MIX MT, 3F, 4F from WOMIX. Using an adapter connecting actuators, MP 10 can be mounted on the mixing valve manufacturing of other companies (see the numbers of adapters). |
Technical data:
| Nominal voltage: | 230 V, +/- 15V, 50/60 Hz, or 24 V, +/- 15V, 50/60 Hz, |
| Power consumption: | 3,5 W; 3,5VA |
| For wire sizing: | wire, 3 x 0,75mm2, length – 2m |
| Torque: | 10 Nm (for nominal voltage) |
| Angle of rotation: | 90 °, unregulated |
| Running time: | 70, 140 seconds for the voltage 230 VAC
140 seconds for the voltage 24 VAC |
| Noise level: | max. 35 dB (A) |
| Position indicator: | stuck on the handle body |
| Protection class: | II |
| Degree of protection: | IP 40 |
| Operating Temperature Range: | 0 – 50°C |
| Weight: | 350 g |
| Switch to manual operation |
|
Type |
Catalog number |
|---|---|
| Actuator MP 10 – 230 / 70 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401010 |
| Actuator MP 10 – 230 / 140 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401011 |
| Actuator MP 10 – 24 / 140 with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401012 |
| Actuator MP 10 – 24 / 140 (0-10V) with adapter A 101 for mixing valve WOMIX MIX M, 3F, 4F | 401041 |
| Adapter A 101 for mixing valve MIX M, 3F, 4F WOMIX – base equipment | 401101 |
| Adapter A 062 for mixing valve WITA Minimix or type H, Meibes V6 | 401062 |
| Adapter A 063 for mixing valve Meibes V7 | 401063 |
| Adapter A 064 for mixing valve ESBE, Danfoss | 401064 |
| Adapter A 065 for mixing valve ESBE, Danfoss VRG, VRB | 401065 |
| Adapter A 066 for mixing valve Womix old generation | 401066 |
Dimensions:
Reviews
There are no reviews yet.
